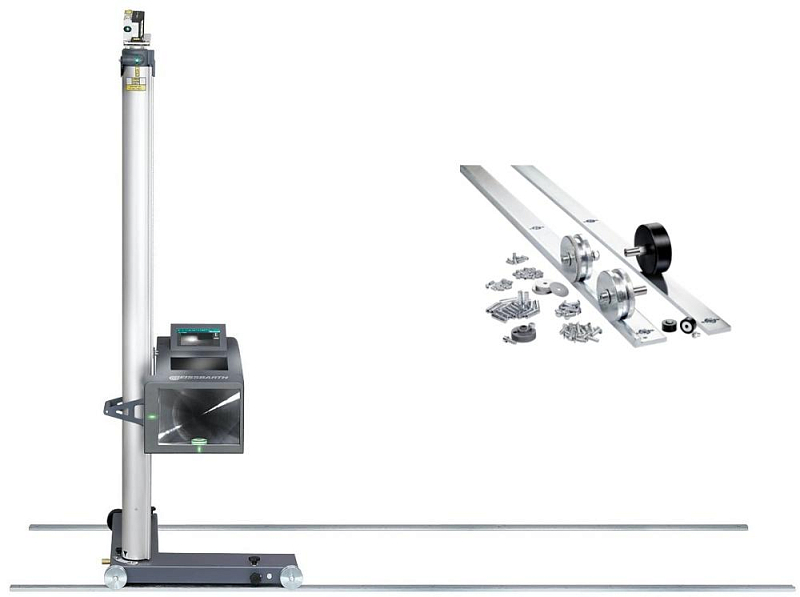

Headlight testing device MLD 9000 with Adjustable rail system, 3 m, floor-mount| without inclinometer
New Equipment • 2022 Production • Unused
Digital headlight testing with MLD 9000: intelligent, fast and precise
Precise green alignment lasers for accurate alignment with the vehicle. Green laser diodes are particularly well visible to the human eye because the eye has its maximum spectral sensitivity in the green range
Cross laser function for precise positioning in the center of the headlight
For all light sources (Xenon, Bi-Xenon, LED, Bi-LED, Halogen) and glare-free high-beam systems (Dynamic Light Assist - DLA, Matrix1, HD-Matrix2, ILS Ford)
All types of vehicles (passenger cars, trucks, motorcycles)
All types of headlights (main headlights, fog lamps, auxiliary lamps)
High-resolution (5 megapixel) CMOS camera for real-time digital image processing
Measurement results in real time optimized with live images
Comparison between measured and limit values and unambiguous red/green evaluation
Saving and archiving of the measured values in database
Reporting of the measurement result possible via PDF
Time-saving quick measurement functionality
Precise definition of the cut-off line without disrupting blue fringe
Workshop-proof touch-screen display (7")
Continuously swiveling display for a variety of applications (such as the MOT for testing or in the workshop for adjustment) and for adapting to the local lighting conditions
Intuitive and simple user guidance
Visual and acoustic signals support the measurement procedure
Independent operation thanks to battery
Measured values: Horizontal and vertical deviation (pitch angle), intensity, roll angle, yaw angle
Ports: LAN, USB, RS232
Live firmware update possible
Optional PC software to display the measurement on the test lane PC
Highest mechanical precision and long-life cycle (suitable for future legal requirements):
A new developed torsion-free and specially hardened aluminum column
Easy to use, robust sliding system for precise height adjustment and comfortable working
Robust and durable counter weight system with toothed
Adjustable rail system, 3 m, floor-mount|
Key Features:
- Adjustable rail system for above-floor and in-floor installation
- Meets the latest testing station requirements: complies with both vehicle manufacturers’ specifications and the HU headlight directive
- In combination with the SEG trolley, height differences of up to 30 mm can be compensated
- Long service life
- High-quality, durable construction
- Precisely guided steel rollers: for accurate measurements and adjustments, only one alignment with the vehicle is required (time saving!)
- Steel guide rollers included in the scope of delivery
- Optionally extendable to 4.5 m (see extended accessories)
Scope of Delivery Adjustable rail system, 3 m, floor-mount:
2x Guide rails (L-profile), 1.5 m
2x Running rails (flat profile), 1.5 m
1x Guide wheel (swing-type – steel)
1x Guide wheel (fixed – steel)
1x Running wheel (swing-type – POM)
2x Rubber buffers as stops
1x Installation material set: drill bushing, cylinder screw, pan-head screw with flange, set screw, washer
