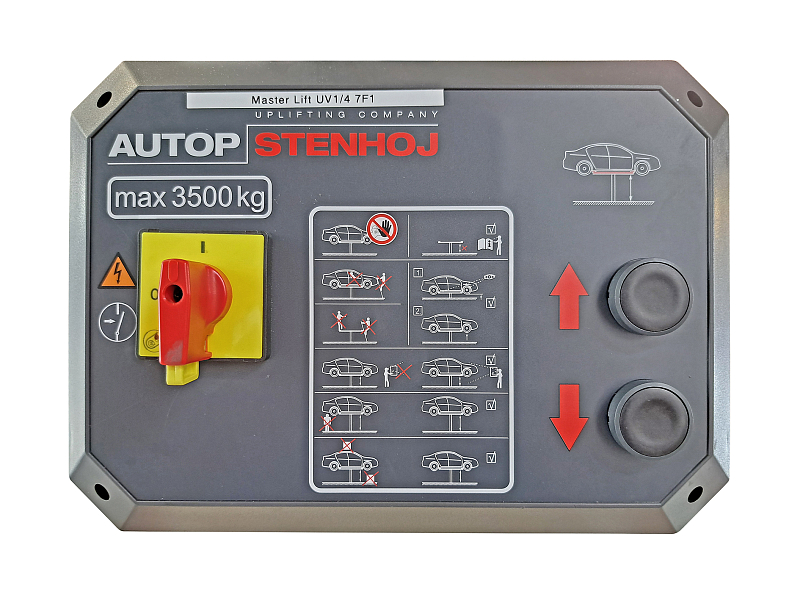

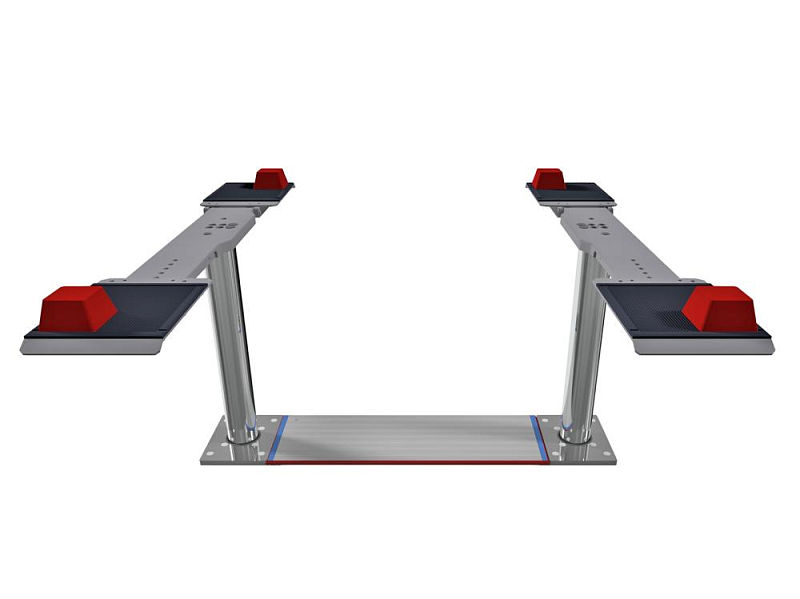

The AUTOPSTENHOJ Masterlift 2.35 NxT Pv BMW is an electro-hydraulic 2-pillar vehicle lift for the repair area in retailers. The vehicle lift is suitable for repair work with a load-carrying capacity of 3500 kg. Synchronisation and protection against one-sided lowering of the pillars (lift cylinder) is ensured by a synchronisation bar. Connecting pieces on the synchronisation bar make it possible to set up the vehicle lift at different pillar distances. A centre cover made of anodised extruded aluminium profile prevents deformation of the cover when driving over with high loads, as can occur during removal and installation of a high-voltage battery (lifting table + high-voltage battery). It is operated via a control panel, which can be installed on the wall or on a post depending on the local conditions.
Special feature:
The vehicle lift is designed for installation in existing steel troughs. Even installation in a third-party trough is possible. Installation in existing steel troughs or installation cassettes is always associated with adjustments to the vehicle lift. These adjustments must be agreed with the manufacturer at the location and checked for feasibility.
Optional Accessories:
14096:
Steel tray for KA 1550, consisting of plug-in tile frame KA 1550
screwable with VA tile frame + screwed lower part of tray
11001:
Rubber pads h=60mm, 120x120xØ100, 1 set = 4 pieces
11102:
Rubber pads h=40mm, 120x120xØ100, 1 set = 4 pieces
