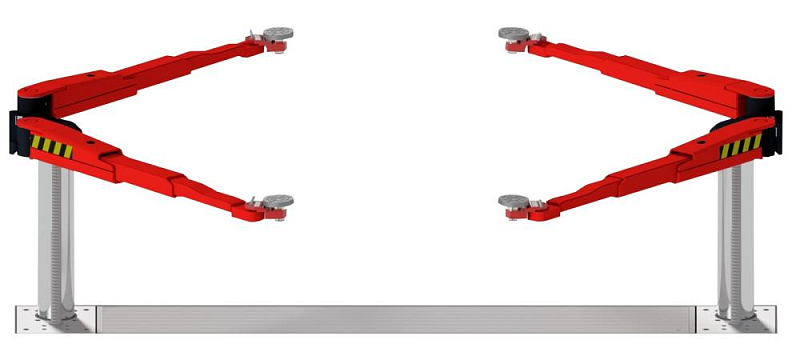

AUTOPSTENHOJ E-Masterlift 2.35 NxT TR Saa BMW
The AUTOPSTENHOJ Masterlift 2.35 NxT TR Saa BMW is an electro-hydraulic 2-pillar vehicle lift for the repair area in retailers. The vehicle lift is suitable for repair work with a load-carrying capacity of 3500 kg. Synchronisation and protection against one-sided lowering of the pillars (lift cylinder)is used one rack per lift cylinder.
The TR version (with rack synchronisation) does not require a large foundation for a steel trough in the workshop floor. The installation can be implemented via a much smaller foundation with two core holes and allows for use in difficult ground conditions, e.g. rocky ground.
Special feature:
The vehicle lift is designed for installation in existing steel troughs. Even installation in a third-party trough is possible. Installation in existing steel troughs or installation cassettes is always associated with adjustments to the vehicle lift. These adjustments must be agreed with the manufacturer at the location and checked for feasibility.

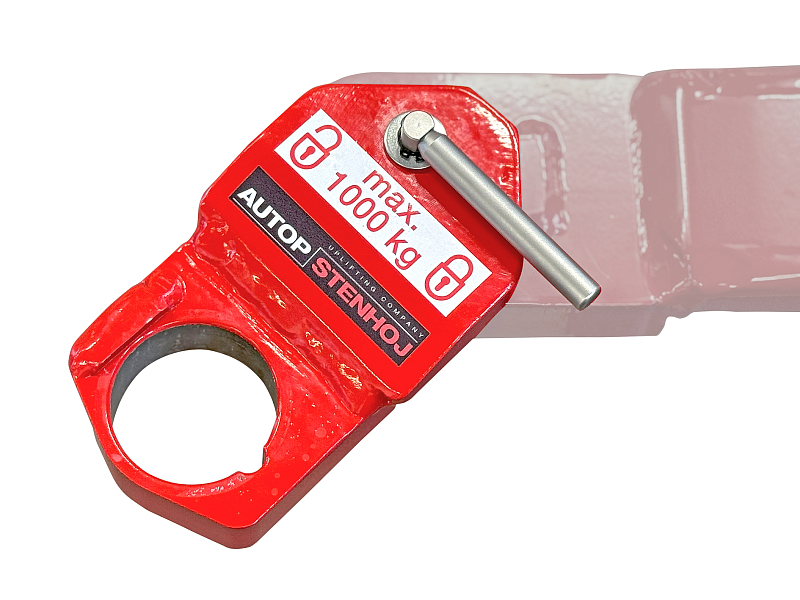

With insertion angles of 0°, 45° and 90°, the adapter
allows for more clearance between the high-voltage battery and swivel arms.
Optional Accessories:
14136:
Hot-dip galvanized frame, KA 2600, with bolted lower frame section, prepared for KG pipes 14141 (Ø300/Ø315x2000)
14141:
Plastic pipes Ø300/Ø315x2000 incl. end caps and oil-resistant seal
16006:
Plug-in mushroom, single telescopic, working range 78-110mm, for lifting platforms with max. lifting capacity of 4000 kg, for Ø50mm mounting hole, 1
piece
11103:
Document holder A4 - AUTOPSTENHOJ - with screws and heavy-duty anchor for fastening
11104:
Set of 2 magnetic storage trays
16010:
Mounting extension 50mm - Ø50mm, 1 piece
16011:
Support extension 100mm - Ø50mm, 1 piece
21105:
Manual release swivel arm with star grip, for 3.5t Saa, 1 set = 4 pieces
