AUTOPSTENHOJ E-Masterlift 2.35 NxT Saa BMW

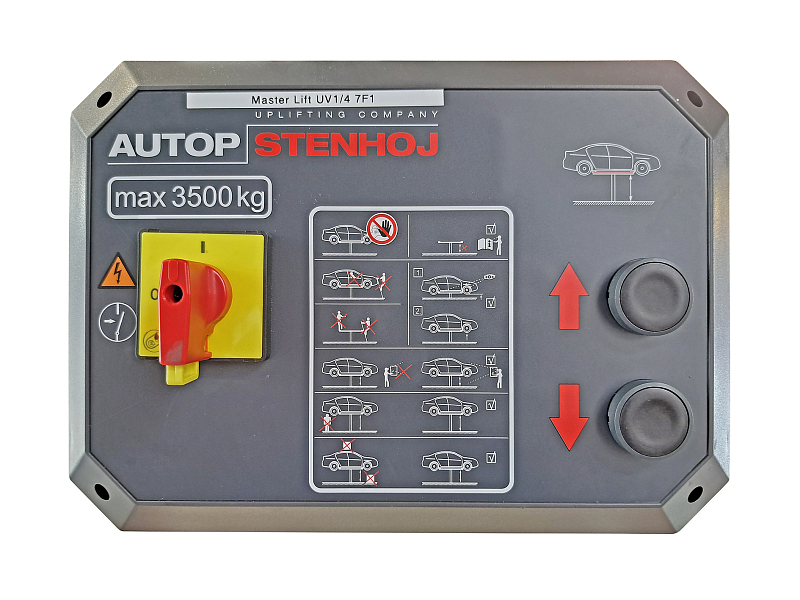

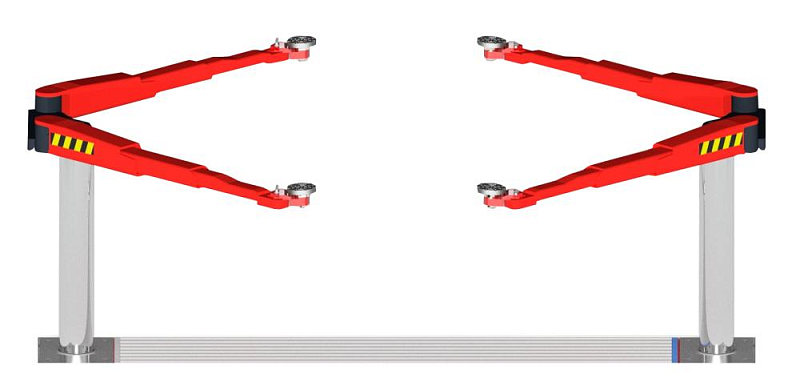

The AUTOPSTENHOJ Masterlift 2.35 NxT Saa BMW is an electro-hydraulic 2-pillar vehicle lift for the repair area in retailers. The vehicle lift is suitable for repair work with a load-carrying capacity of 3500 kg. Synchronisation and protection against one-sided lowering of the pillars (lift cylinder) is ensured by a synchronisation bar. Connecting pieces on the synchronisation bar make it possible to set up the vehicle lift at different pillar distances. A centre cover made of anodised extruded aluminium profile prevents deformation of the cover when driving over with high loads, as can occur during removal and installation of a high-voltage battery (lifting table + high-voltage battery). It is operated via a control panel, which can be installed on the wall or on a post depending on the local conditions.
Special feature:
The vehicle lift is designed for installation in existing steel troughs. Even installation in a third-party trough is possible. Installation in existing steel troughs or installation cassettes is always associated with adjustments to the vehicle lift. These adjustments must be agreed with the manufacturer at the location and checked for feasibility.
With insertion angles of 0°, 45° and 90°, the adapter
allows for more clearance between the high-voltage battery and swivel arms.
Optional accessories:
14097:
Steel tray for KA 2600, consisting of hot-dip galvanized frame + screwed
bolted lower part of the tray, primed (outside) + painted scale armor (inside)
16006:
Plug-in mushroom, single telescopic, working range 78-110mm, for lifting platforms with max. lifting capacity of 4000 kg, for Ø50mm mounting hole, 1
piece
11103:
Document holder A4 - AUTOPSTENHOJ - with screws and heavy-duty anchor for fastening
11104:
Set of 2 magnetic storage trays
16010:
Mounting extension 50mm - Ø50mm, 1 piece
16011:
Support extension 100mm - Ø50mm, 1 piece
21105:
Manual release swivel arm with star grip, for 3.5t Saa, 1 set = 4 pieces
