AUTOPSTENHOJ Masterlift 2.35 NxT TR PV BMW

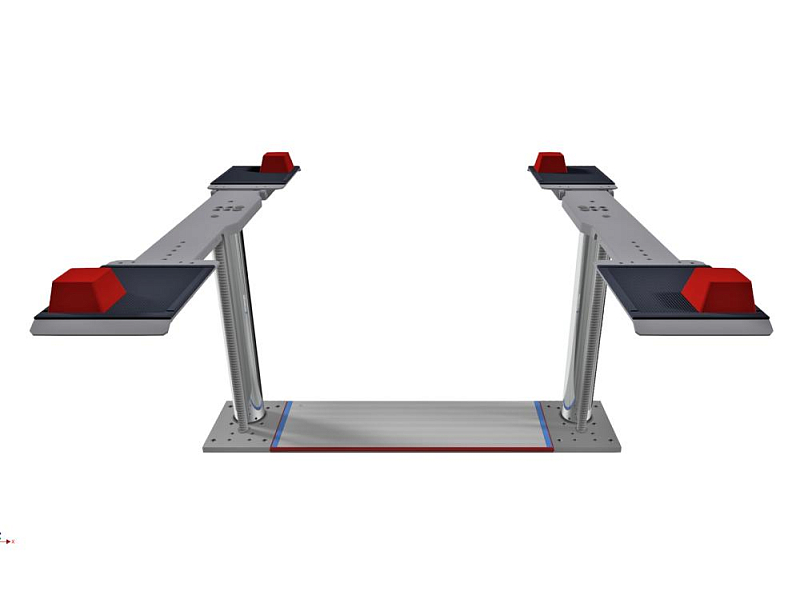

The AUTOPSTENHOJ Masterlift 2.35 NxT TR Pv BMW is an electro-hydraulic 2-pillar vehicle lift for the repair area in retailers. The vehicle lift is suitable for repair work with a load-carrying capacity of 3500 kg. Synchronisation and protection against one-sided lowering of the pillars (lift cylinder)is used one rack per lift cylinder.
The TR version (with rack synchronisation) does not require a large foundation for a steel trough in the workshop floor. The installation can be implemented via a much smaller foundation with two core holes and allows for use in difficult ground conditions, e.g. rocky ground.
Special feature:
The vehicle lift is designed for installation in existing steel troughs. Even installation in a third-party trough is possible. Installation in existing steel troughs or installation cassettes is always associated with adjustments to the vehicle lift. These adjustments must be agreed with the manufacturer at the location and checked for feasibility.
Optional Accessories:
14135:
Hot-dip galvanized frame, KA 1550, with bolted lower frame section, prepared for KG pipes 14141 (Ø300/Ø315x2000)
14141:
Plastic pipes Ø300/Ø315x2000 incl. end caps and oil-resistant seal
11001:
Rubber pads h=60mm, 120x120xØ100, 1 set = 4 pieces
11102:
Rubber pads h=40mm, 120x120xØ100, 1 set = 4 pieces
11103:
A4 document holder, aluminum - AUTOPSTENHOJ
11104:
Set of magnetic storage trays (2 pieces)
14103:
Aluminum cover for empty cassette, KA 1550
