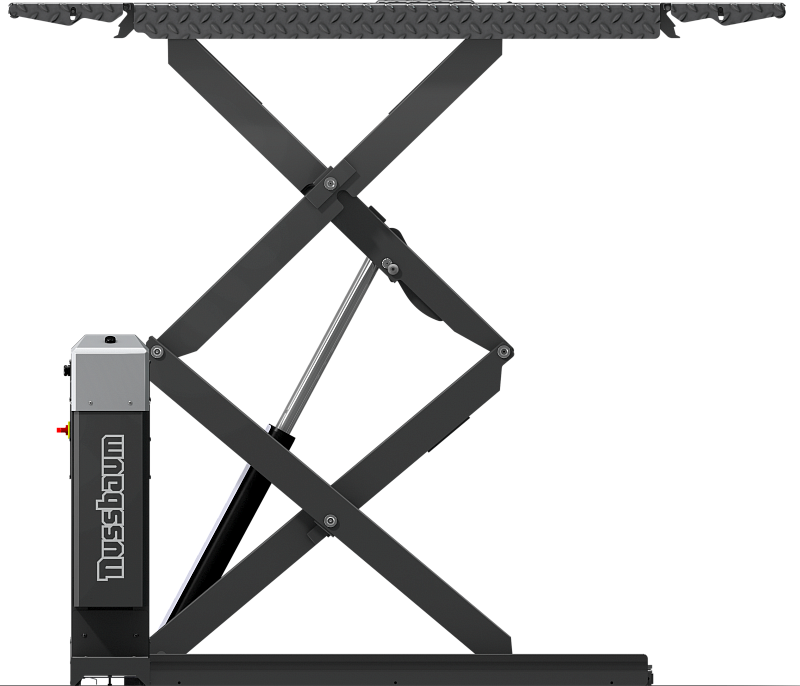

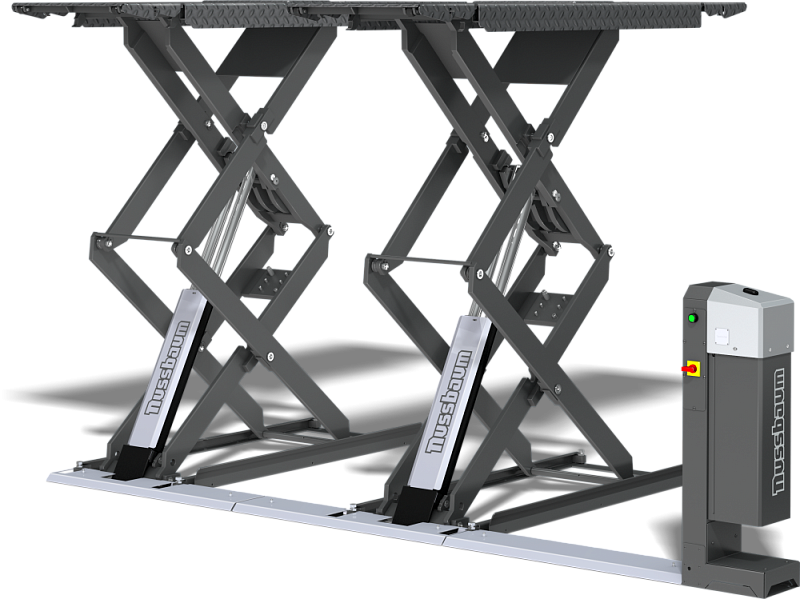

The Nussbaum Jumbo Lift NT BMW 4t is a double scissor lift for wheel and fast service in the dealership.
The lifting platform is suitable for BMW and MINI vehicles up to a load capacity of 4000 kg. The lifting platform is characterized by a small footprint with length-adjustable lifts and a lifting height of 2000mm.
In order to be able to lift even low-lying vehicles safely, the lifting platform must be mounted on the ground level.
Technical Details
Foundation (min. 160mm / with min. quality C20/25)
12 dowels BM10-15/70/40, (depending on the foundation, see test book)
Hydraulic oil HLP ISO 32, capacity approx. 13 litres
Electrical connection 3 PH, N + PE, 400 V, 50 Hz
Fuse 16 Amp. sluggish, discharge
Optional Accessories
975679 Tuning ramps 40mm made of plastic granules for lowered vehicles
Set = 4 pieces
Scope of delievery
Lift with powder-coated platform
CE-STOP
Compact suboil unit
Installation drive-on direction left or right possible
Length of hydraulic lines 1 m
1 set = 4 pieces superductile polymer pads 50 x 150 x 340 mm
Remarks
Hydraulic hose 1m is short
