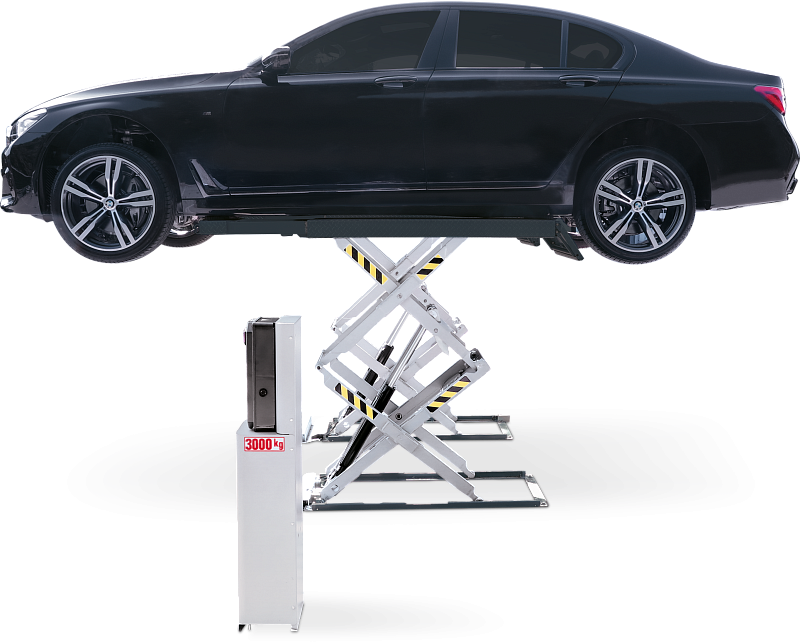

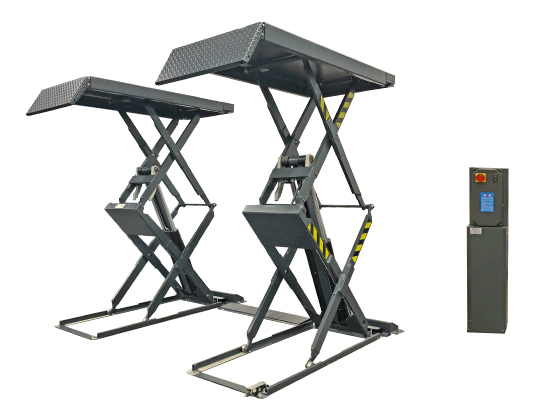

Electrohydraulic double scissor lift for floor or recessed installation.
The control unit is usually positioned on the left with respect to the direction of access, at a distance of about one metre from the footboard.
- hydraulic synchronisation of the movements of the footboards, independently of the load division of the footboards themselves
- automatically activated mechanical support device to guarantee maximum safety
- safety valves for overload and breakage of hydraulic tubing
- check valve for descent speed
- electrohydraulic device for halting descent movement in case of obstruction to the footboard
- electric device for halting descent movement in case of obstruction to the footboard
- jointed pivot with self-lubricating bushes which do not require maintenance
- electrical system with protection class. Low voltage safety devices and control circuit
Scope of delivery
- S505A6: Set of pads
Technical details
- Capacity: 3,000 kg_x000D_

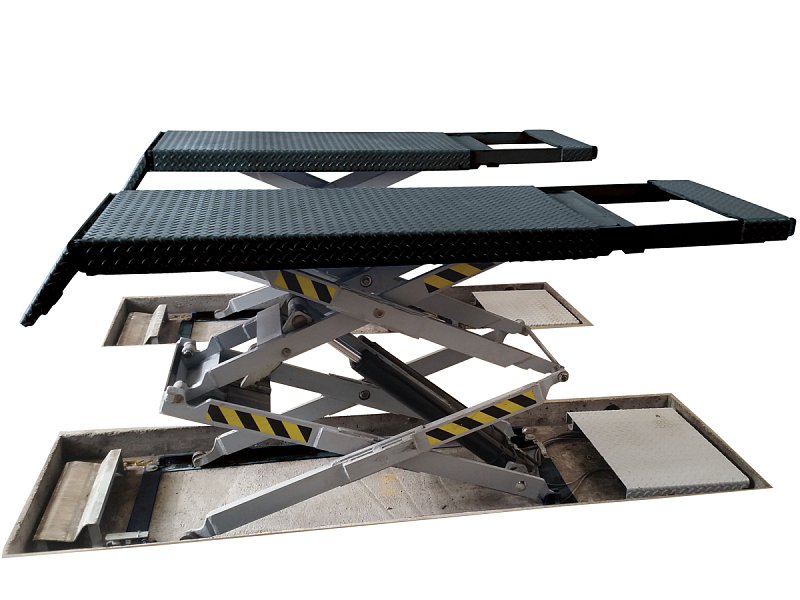

- Underfloor model_x000D_
- Height max: 1795mm_x000D_
- Platform length: 2282 mm
