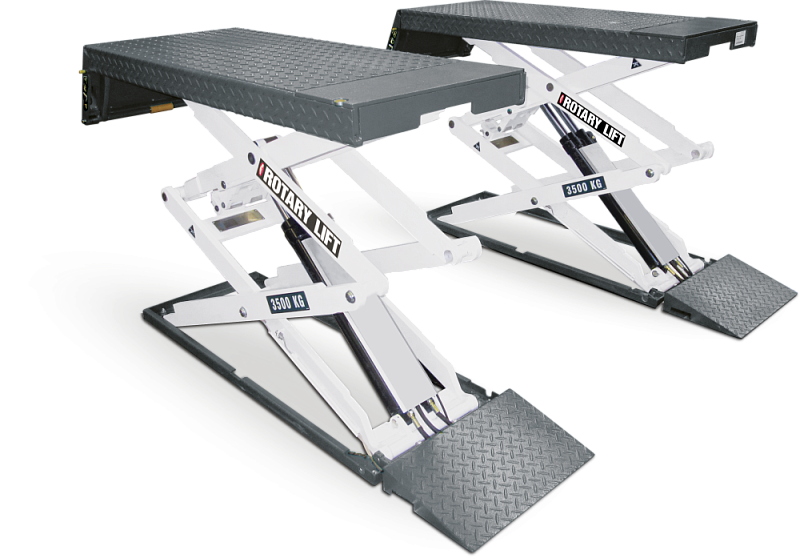

Double scissor lifting platform Rotary DS35EX HG BMW

Double scissor lifting platform with 3.5t carrying capacity for installation above or under floor. With an adjustment of 2350 mm, this EX variant allows to lift the G12.
Note: Lifting the BMW i8 (I12, I15) is recommended by using the under floor variant (floor level) due to low ground clearance of the vehicle.

Technical details:
- Scissor lift type: double scissors
- Drive type: electro-hydraulic
- Type of installation: on the floor
- Load capacity: 3500 kg
- Max. lifting height: 1940 mm
- Lifting time: 40 s
- Lowering time: 40 s
- Drive-on height: 105 mm
- Surface coating: Powder coated
- Corrosion protection: cathodic dip painting (KTL)
- Runway length: 1500 - 2358 mm
- Wheel-free jack: not possible
- Drive power: 3.0kW
- Electrical connection: 400 V | 50Hz
- Width: 2160mm
- Weight: 885 kg

Optional accessories:
Rotary DS35EX HG BMW - Under floor installation kit

Scope of delivery:

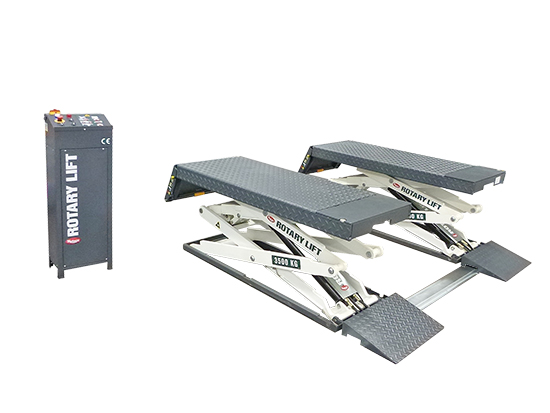

- Rotary DS35EX HG BMW double scissors lifting platform
- Control console with control unit and hydraulic power pack
- 4 mounting blocks (hard rubber), height 30 mm
- 4 mounting blocks (hard rubber), height 70 mm
- 1 set of cable covers
- Operating instructions and logbook
Special paint finish in anthracite grey RAL 7016
