Description

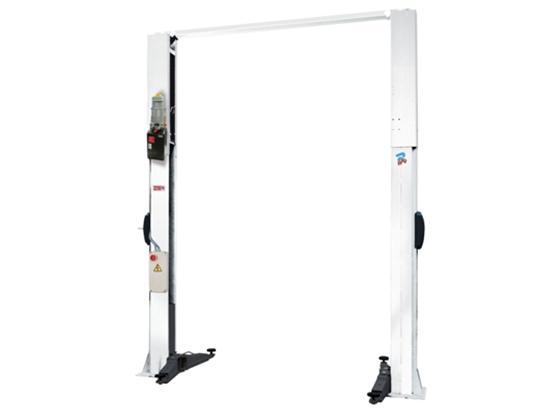

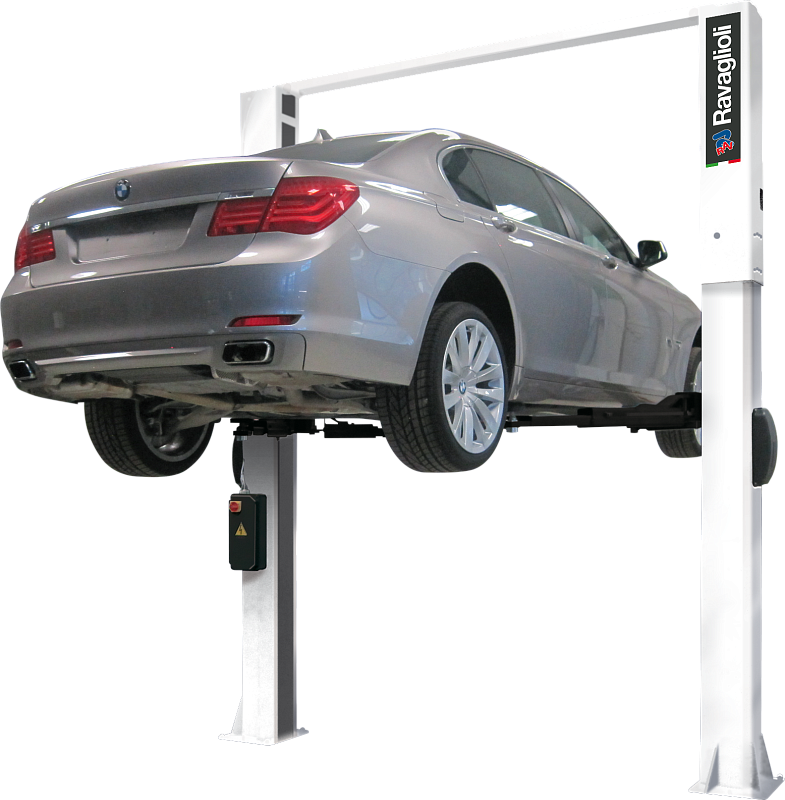

Electro-hydraulic two-post vehicle hoist with a load-carrying capacity of 3.2t.
Scope of delivery
- VARKPH370.32/T: top unit and pneumatic release
- S370A1T: upper stop safety device
Technical details
- Capacity: 3,200 kg
- Lifting time approx.: 40 sec
- Overall width: 3,286mm
- Total height: 4,035 mm / 4,165 mm
- Passage width: 2,300 mm
- Lifting height: 1990 mm
- Lower swivel height: 95-135 mm
- Support arm length: 900-1300 mm
- Motor power: 2.6 kW
- Electrical connection: 400 V/50Hz/3Ph
* The manufacturer reserves the right to change the characteristics, appearance, configuration of the product and the place of its production without notifying the dealer. This information is not a public offer.
