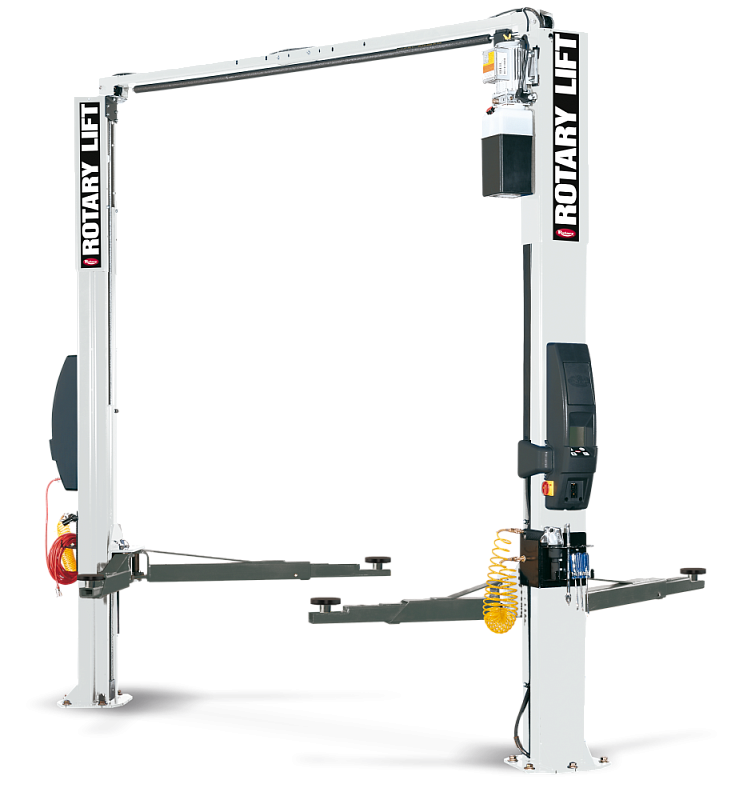

Electro-hydraulic vehicle hoist SPOA40M-BMW

Electro-hydraulic vehicle hoist with asymmetric pillar and support arm design with a large mounting area.

Technical details:
- Number of columns: 2
- Drive type: electro-hydraulic
- Control: manual
- Type of installation: on the floor
- Load capacity: 4500 kg
- Max lifting height: 1957 mm
- Lifting time: 30 s
- Turntable height min.: 95 mm
- Turntable height max.: 155 mm
- Column distance: 2860 mm
- Passage width: 2546 mm
- Shut-off height: 4065 mm
- Required ceiling height: 4230 mm
- Surface coating: Powder coated
- Support arm design: asymmetrical
- Telescoping support arms in front: 3-fold
- Telescoping rear support arms: 3-fold
- Front arm length min.: 550 mm
- Front arm length max.: 1106 mm
- Rear arm length min.: 876 mm
- Rear arm length max.: 1472 mm
- Drive power: 4 kW
- Electrical connection: 400 V | 50 Hertz
- Width: 3440mm
- Height: 4170mm
