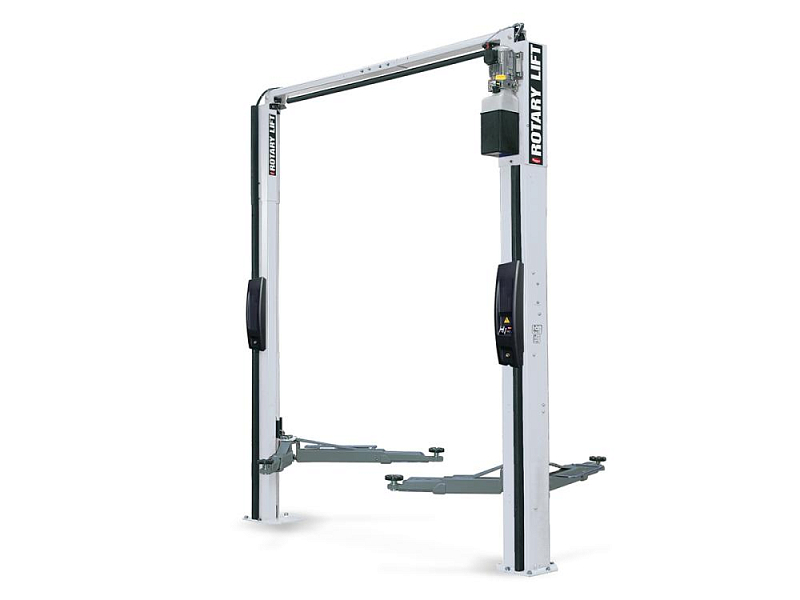

Electro-hydraulic 2-post lift SPOA3T-5-SC BMW

The Rotary SPOA3T-5-SC BMW is an electro-hydraulic 2-post vehicle lift for use in the admission and repair area within the Retailer. It is suitable for repair work with a load-carrying capacity of 3500 kg. The extension range of the engine support arms enables all BMW and MINI vehicles to be raised, including the 7 Series-long version G12.

Technical details:
- Number of columns: 2
- Drive type: electro-hydraulic
- Control: electric
- Type of installation: on the floor
- Load capacity: 3500 kg
- Lifting height max.: 1940mm
- Lifting time: 30 s
- Turntable height min.: 85 mm
- Turntable height max.: 130 mm
- Column distance: 2740 mm
- Column width outside: 3180 mm
- Column height: 3775 mm
- Passage width: 2520 mm
- Shut-off height: 3670 mm
- Required ceiling height: 3835 mm
- Surface coating: Powder coated
- Support arm design: symmetrical
- Telescoping support arms in front: 3-fold
- Telescoping rear support arms: 3-fold
- Front arm length min.: 585 mm
- Front arm length max.: 1195 mm
- Rear arm length min.: 585 mm
- Rear arm length max.: 1195 mm
- Drive power: 4 kW
- Electrical connection: 400 V | 50 Hertz
- Height: 3775mm

Scope of delivery:
- 2 posts with one operating unit
- 4 support arms, double-telescoping
- Support plate connector system
- Wheel lift incl. safety cutout
- Operating instructions and inspection book
